Register Box– Supply
Register Box– Supply Diagram
Register Box– Supply Side View

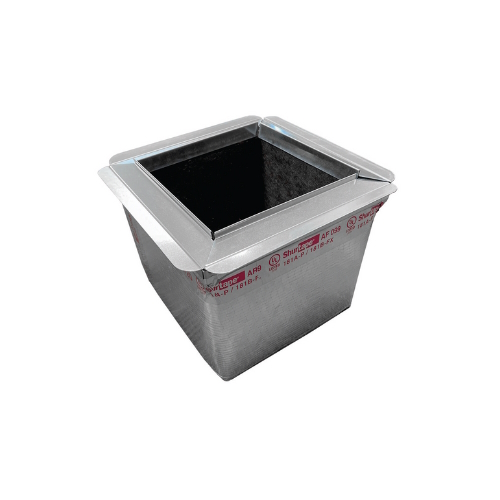

Register Box– Supply


These register boxes are used primarily for supply air. The size indicates the register/grille size and you determine the flex duct size and location.

  • R6 Ductboard (Typical)
  • Galvanized Sheet Metal Frame
  • Completely Assembled
  • Seams taped with Smacna ul181 Tape
  • Raised Register Flange for Sheet Rock Guide
  • Custom Sizes Available
  • Fabricated to your custom dimensions in your choice of Galvanized, Stainless, Copper, Galvanneal, Galvalume or Black Steel.

Specifications

Part # Description A B C
35-0804-11 Supply Register Box 08" 04" 11"
35-1006-11 Supply Register Box 10" 06" 11"
35-1206-11 Supply Register Box 12" 06" 11"
35-1406-11 Supply Register Box 14" 06" 11"
35-1408-11 Supply Register Box 14" 08" 11"
